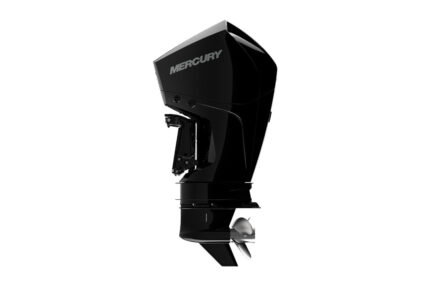

Mercury 225hp DTS Outboard | 225XL
Mercury 225hp DTS Outboard | 225XXL
Motor Specifications
-
- Engine Type: Mercury 225XXL DTS V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 30" XX-Long
- Steering: Digital Throttle & Shift (DTS)
- Starting: Smart Start Electric
- Weight: 494 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty

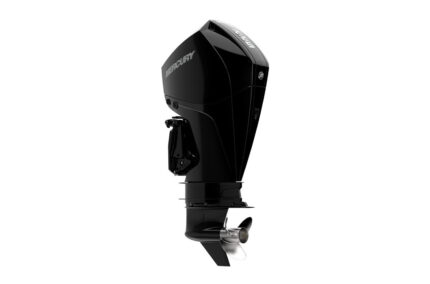

Mercury 225hp Outboard | 225CXL
Mercury 225hp Outboard | 225CXL | Clearance | 8707
Motor Specifications
-
- Engine Type: Mercury 225CXL Counter Rotation V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 25" X-Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 484 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty

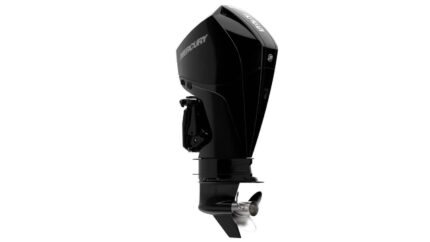

Mercury 225hp Outboard | 225L
Motor Specifications
-
- Engine Type: Mercury 225L V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 20" Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 473 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty
Mercury 225hp Outboard | 225XL
Motor Specifications
-
- Engine Type: Mercury 225XL V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 25" X-Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 484 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty
Mercury 225hp Outboard | 225XXL
Motor Specifications
-
- Engine Type: Mercury 225XXL V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 30" XX-Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 494 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty
Mercury 225hp White DTS Outboard | 225CXXL
Motor Specifications
-
- Engine Type: Mercury 225CXXL White DTS Counter Rotation V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 30" XX-Long
- Steering: Digital Throttle & Shift (DTS)
- Starting: Smart Start Electric
- Weight: 494 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty

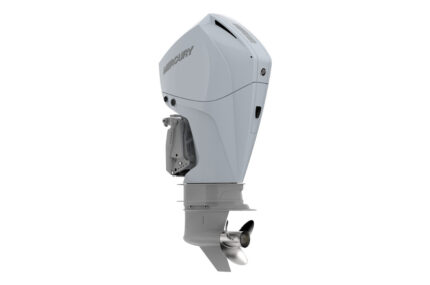

Mercury 225hp White Outboard | 225CXL
Motor Specifications
-
- Engine Type: Mercury 225CXL White Counter Rotation V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 25" X-Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 484 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty

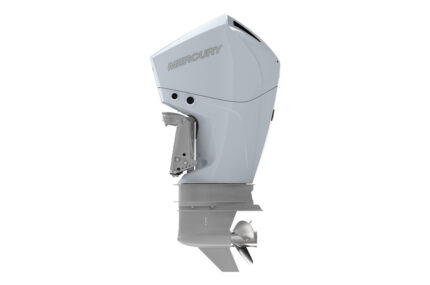

Mercury 225hp White Outboard | 225L
Motor Specifications
-
- Engine Type: Mercury 225L White V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 20" Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 473 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty
Mercury 225hp White Outboard | 225XL
Motor Specifications
-
- Engine Type: Mercury 225XL White V-6 Four Stroke
- Horsepower: 225hp
- Cylinders: V-6
- Shaft Length: 25" X-Long
- Steering: Remote Mechanical
- Starting: Smart Start Electric
- Weight: 484 lbs
- Maximum Trim Range: 20° (-6° to 14°)
- Maximum Tilt Range: 73° (-6° to 67°)
- Alternator: 85 amp / 1,071 watt with Idle Charge
- Full Throttle Range: 5200 - 6000 rpm
- Displacement: 3.4 L
- Fuel System: Electronic Fuel Injection (EFI)
- Fuel Induction System: 24-valve, DOHC
- Warranty: Mercury Marine 3-Year Warranty
